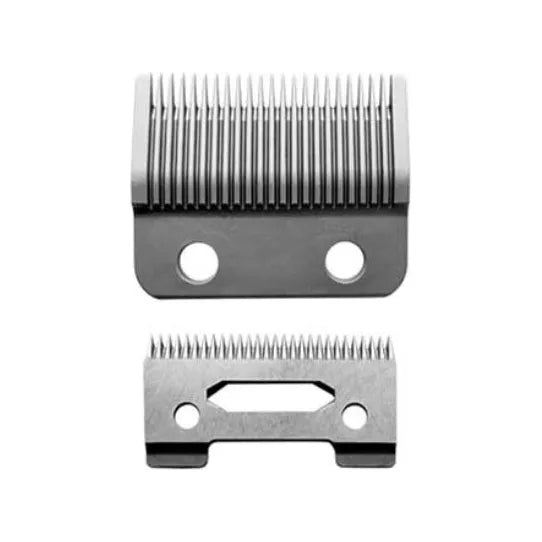

Kyone HYBRID BLADE PRO for Ultima Clipper

Kyone HYBRID BLADE PRO for Ultima Clipper

Kyone Hybrid knife PRO suitable for:

• Ultima hair clipper UC-01
• Ultima Iron Taper Pro hair clipper

Art. Code: UC-ZHF

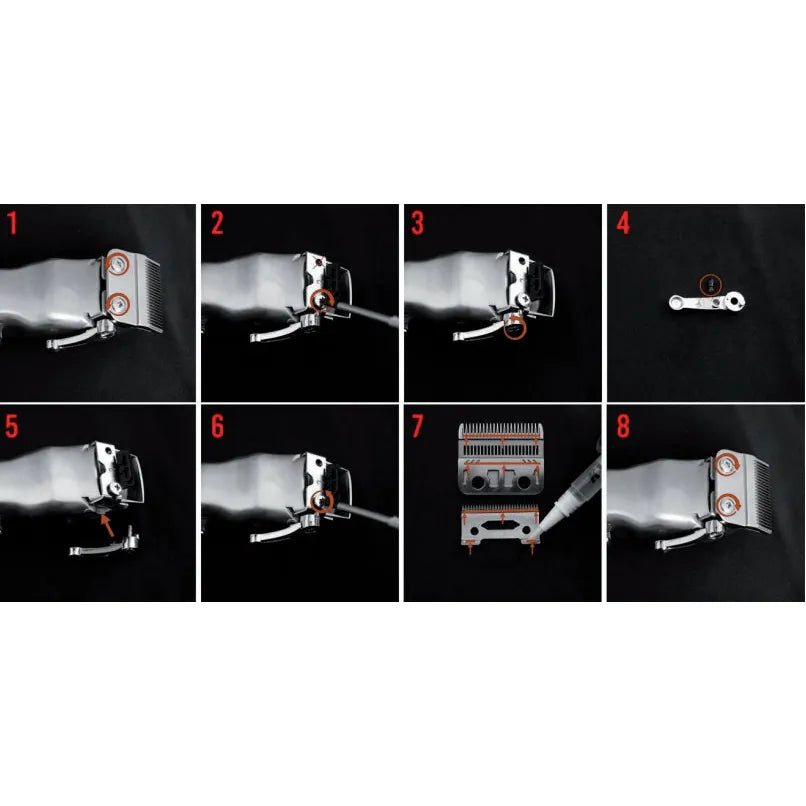

Clean cutting head / Change side lever and/or make it infinitely adjustable:

Step 1: Loosen both screws counterclockwise and remove the blades. Leave the plastic
part, including the spring, in place.
Step 2: Only turn back the right screw. This is to block the nut, so that you
can loosen the screw of the side lever without it turning.
Step 3: Remove the screw of the side lever by unscrewing it counterclockwise and place it
next to the machine.
Step 4: If you want to remove the click system, to be able to work steplessly, remove the
part that you see circled. Keep this safe!
6 ENGLISH
Step 5: Replace the side lever and make sure that you screw it back to the correct tension. Test this
by moving the side lever up and down. This varies from person to person, but make sure that it is not
too tight or too loose.

Step 6: You can now loosen the right screw clockwise.
Step 7: Oil the blades at the indicated points.
Step 8: Replace the blades by tightening the screws clockwise. Do not tighten these
completely yet, because you still need to check if your blade is straight and how short it should
be set. Set the blades short and straight, and then tighten the screws well. Make sure the blades
remain straight!
